SatCom UDC

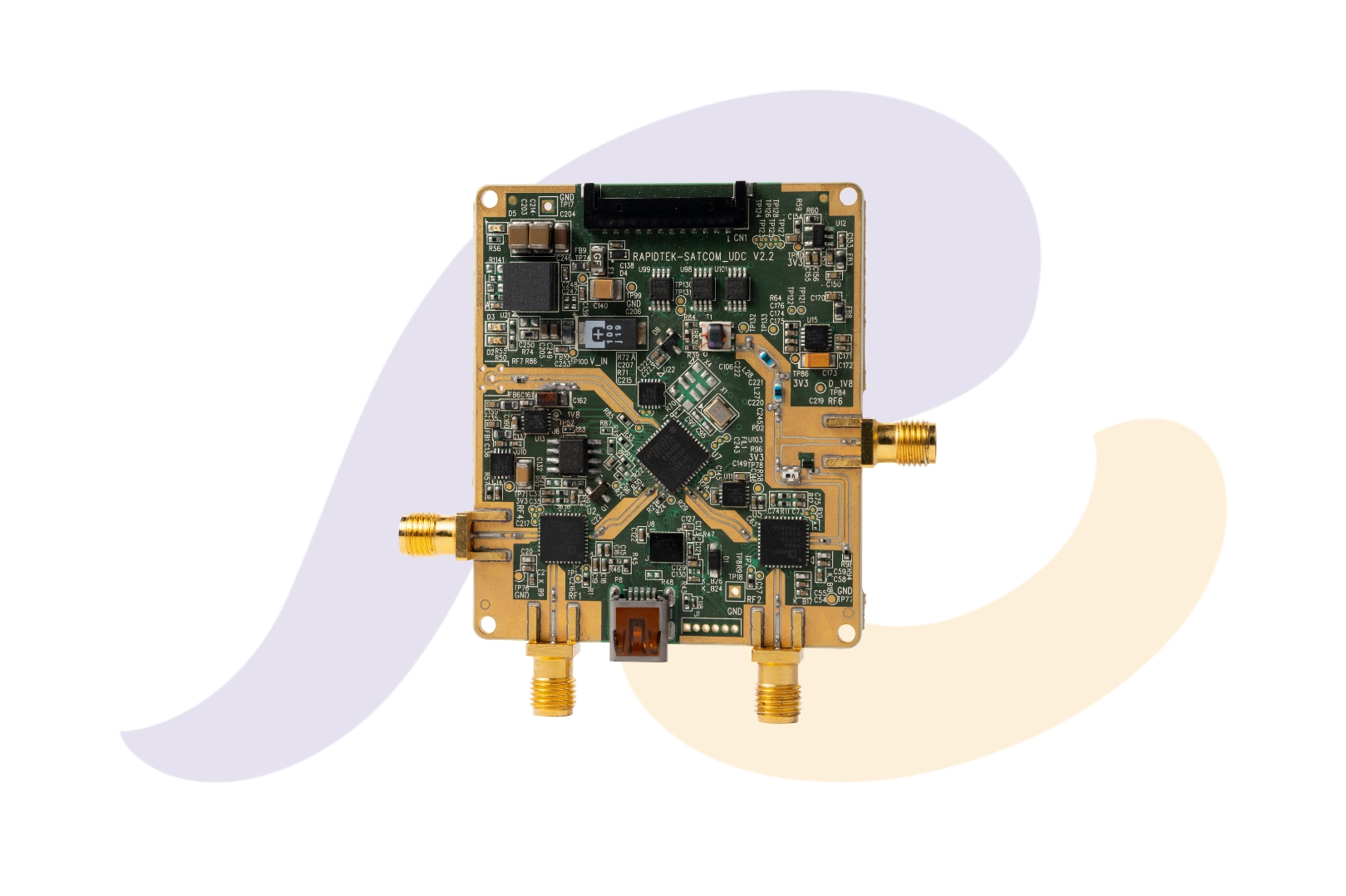

Satcom UDC
• Individual channels for Up/down conversion
• Gain adjustable for both Tx and Rx chain
• Embedded temperature sensor and power detector
Our Gen2 AESA（ Tx + Rx）
Phased Array Antenna Module （Rx）
Rx Phased Array Antenna Module of the user terminal for satellite application. The proposed array module consists of phased array antenna, upconverter function, antenna control unit and fast beam steering algorithm. The receiving performance （G/T） of the proposed array could up to 11.5 dB/k @ 11.7 GHz with at least 13 dBc 1st SLL suppression.
- High performance
- Beam resolution up to 1 degree
- G/T: up to 11.5 dBk @ 11.7 GHz
- Polarization: Linear, RHCP, LHCP
- Integrated with Down converter

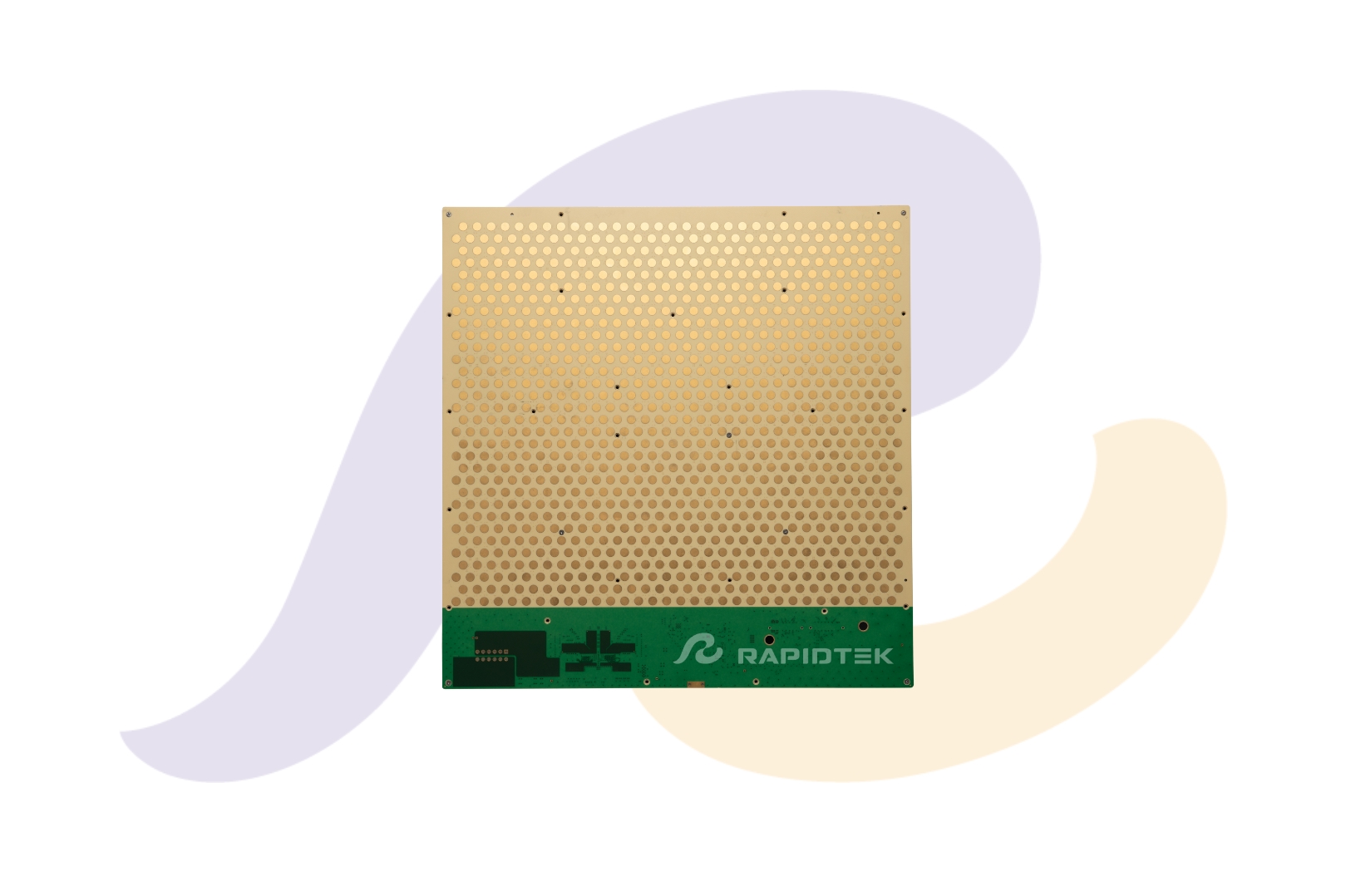

Phased Array Antenna Module （Tx）
Tx Phased Array Antenna Module of the user terminal for satellite application. The proposed array module consists of phased array antenna, upconverter function, antenna control unit and fast beam steering algorithm. The equivalent isotropic radiated power of the proposed array could up to 45 dBW with at least 13 dBc 1st SLL suppression.
- High performance
- Beam resolution up to 1 degree
- EIRP: up to 45 dBW @ 14.25 GHz
- Polarization: Linear, RHCP, LHCP
- Integrated with Up converter
- Can be customized and scalable
